Innovative Interfaces
ica2 new site.png


MSRP - $299.99 USD
Est. Street Price: $249.99 USD

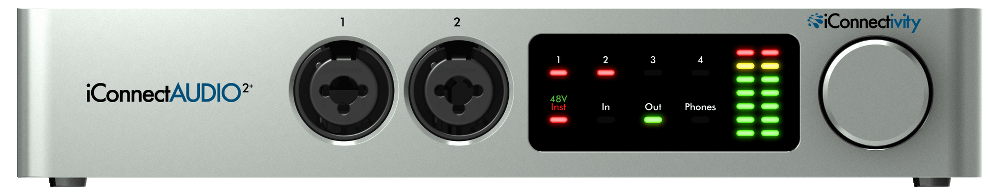

iConnectAUDIO2+:

iConnectAUDIO2+ has been discontinued. Please check out our current Audio interface lineup.

In the studio, on stage, or on the go, iConnectAUDIO2+ lets your music go wherever it takes you.

  • 2 high-quality combination mic/line/instrument inputs assure that every nuance of your musical creations is captured faithfully.

  • 3 pairs of independent stereo outputs are perfect for DJ and electronic music applications.

  • Configurable audio paths let you route, combine, and monitor signals the way you need.

  • Advanced MIDI connectivity, routing, and management solve the connection challenges between you, your MIDI gear, and computing devices.

  • Full compatibility with Mac OS, Windows and iOS devices, and the ability to pass audio and MIDI from one to another unleashes new solutions for your creative process.

With its powerful features and affordable price, iConnectAUDIO2+ is unbeatable.




What Makes iConnectAUDIO2+ Unique?

iConnectAUDIO2+ has been discontinued. Please check out our current Audio interface lineup.

Other audio interfaces:
Simple analog in and out, maybe MIDI in and out as an afterthought. Support for only one computer. iConnectAUDIO2+ lets you do so much more....

The iConnectAUDIO2+ Difference

  • More versatility:
    iConnectAUDIO2+ adapts to the way you create music. Bring it with you to the stage or club, record with it live, use it in your studio.
    Leave your power supply at home.
    It's built like a tank, it sounds great, and it's highly affordable.

  • More power to create:
    Support for two computer devices gives you more power to create. More creative workflow. Easier collaboration.
    Who only has one computer these days? iConnectAUDIO2+ harnesses the power of two - at the same time.
    One plug brings your iPad into your workflow, or even another musician's computer. Automatic configuration make it easy to route audio and MIDI.

  • More flexible workflow:
    Designed for the way you work.
    Create with MIDI gear. Add your mics, instruments, and synths.
    Route your MIDI and audio everywhere. Sync everything without cables.
    It's the iConnectivity flexible workflow.



Key features



  • 1 X 1 DIN-MIDI in/out

  • Auracle software (Mac OS/Windows) makes it simple to set up, with settings stored in flash memory on the device

  • High-resolution audio - up to 24-bit/96kHz AD/DA conversion

  • USB audio and USB-MIDI Class-Compliant

  • Capacitive touch display and control surface

  • Bus powered

  • Optional power supply recommended for optimal use with iOS devices (not included)

  • Multi-host Device ports – use with one computer device plus an iOS device at the same time, or up to two computer devices (Mac OS/Windows) at the same time

  • Audio passThru™ routes audio digitally between computer devices

  • 2 XLR ¼” TRS combo analog inputs, each with individual +48V phantom power toggle and impedance switching

  • 4 ¼” TRS balanced analog outputs

  • ¼” stereo headphone output with independent mix

The features of iConnectAUDIO2+ are patented and patent pending. See www.iConnectivity.com/patents for more information.

Product features are subject to change. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iConnectivity, iConnectMIDI, iConnectAUDIO, ConnectAUDIO and Audio passThru are trademarks of iKingdom Corp. Copyright (c) iKingdom Corp. 2017



What's in the box

  • 1 x iConnectAUDIO2+ Hybrid Multi-Host Audio & MIDI Interface with passThru™ technology

  • 1 x USB cable (for desktop computer connectivity)

Bundled software & sounds

Big Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity is proud to include a special sampler of Big Fish Audio samples and loops that's perfect to jumpstart or augment your production when you register your iConnectivity audio interface.



iConnectAUDIO2+ Audio Specifications

Microphone Inputs

  • Gain: 0- 60 dB (1 dB steps)
  • Frequency Response: 20 Hz - 20kHz
  • SNR: 104dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)
  • THD+N: -90 dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)

Line Outputs

  • Maximum Output Level: 12 dBu, 9.8 dBV, 3.1 Vrms
  • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
  • SNR: +98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)

Line / Instrument Inputs (Balanced)

  • Attenuator: 20 dB (fixed)
  • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
  • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)

Headphone

  • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
  • SNR: +100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -99 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • Power output into 30 Ohms per channel: 34 mW per channel

Line / Instrument Inputs (Single Ended Input)

  • Attenuator: 20 dB (fixed)
  • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
  • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)

Digital Performance

  • 24-bit resolution
  • A-D Dynamic Range:102dB (fs= 48kHz, 20kHz - 20kHz, A-Weighting, 24bit)
  • D-A Dynamic Range:104dB (fs= 44.1kHz, 20kHz - 20kHz, A-Weighting, 24bit)
  • Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

iConnectAUDIO2+ User Resources



Device Specifications



Width

214 mm
8.43 in

Height

37 mm
1.46 in

Depth

140 mm
5.51 in

Weight

965 g
2.13 lbs

Up to 2 iConnectAUDIO2+ fit comfortably in a standard 1U rack shelf

System Requirements



Macintosh

Mac OS X 10.8 or later*
one free USB port




Windows

Windows 7 or greater
one free USB port

iOS

iOS 8 or later with Lightning connector
CoreMIDI-compatible app**





Product features are subject to change. Apple logo, Macintosh, OS X, Mac, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iConnectivity, iConnectMIDI, iConnectAUDIO, ConnectAUDIO, mio, and Audio passThru are trademarks of iKingdom Corp. Copyright (c) iKingdom Corp. 2017
