Pro Tips for Mastering the mioXL: Remotely Changing Presets via Program Changes

Are you looking for a way to manage your mioXL presets directly from your DAW without physically interacting with the interface? This article will walk you through leveraging program change messages within your DAW (specifically using Ableton Live) to seamlessly access and switch between presets on the mioXL. This technique is perfect for both studio and live performance environments, helping you streamline your workflow and stay focused on your creative process!

Accessing mioXL Presets from Your DAW

The mioXL features 32 preset slots accessible from its front panel or by using program change messages via a DAW. Here’s how to set up remote preset switching in Ableton Live, though the process is similar across any mioXL compatible DAW, which is essentially any DAW that can handle MIDI.

Step 1: Set Up the mioXL in Your DAW

Connect the mioXL to your computer via the USB-DAW port and confirm it’s recognized by both your computer and DAW.

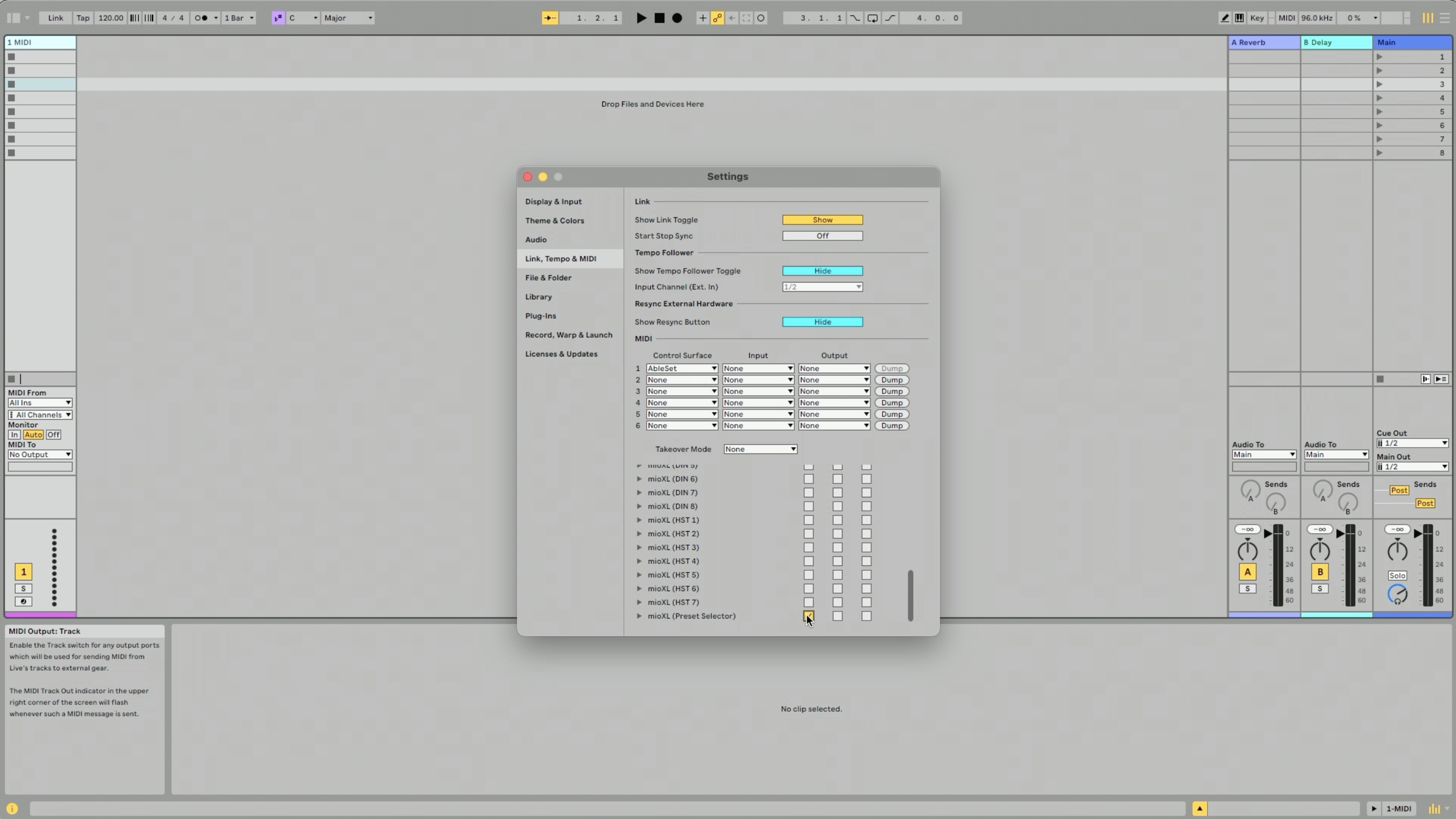

In Ableton Live, access MIDI Preferences by navigating to Preferences > Link, Tempo & MIDI. Under the output section, locate "mioXL (Preset Selector)" and enable the “Track” option. Also make sure to select “mioXL (Preset Selector) under the “MIDI To” section of your track. This setting allows Ableton Live to communicate with the mioXL, enabling it to send program change messages to the device.

Step 2: Sending Program Change Messages

With the “mioXL (Preset Selector)” activated, you can now create MIDI clips in Ableton Live to send program change messages!

In Ableton Live, double click in your track to create a “dummy” MIDI clip, and then name it after the desired preset (e.g., “Preset 1” for the first preset).

In the clip view, find the Bank/Sub/Pgm section and enter the preset number (1 to 32) in the Program Change box to load the desired preset (e.g., “1” for preset 1).

Launch the clip to send the program change message, and you’ll see the mioXL switch to the selected preset; repeat this with different clips to quickly and easily access any preset from 1 to 32.

Best Practices for Naming Presets

Naming your presets thoughtfully is essential for efficiency, especially when managing a large number of configurations. Avoid using the same name across different presets to prevent confusion and unintended switches during performances! It’s essential to ensure each preset has a unique and descriptive name to keep your workflow clear and organized.

Advantages of Remote Preset Management

Controlling your mioXL presets directly from your DAW enhances both studio workflows and live performances. In the studio, you can instantly switch between complex configurations with a single clip launch, keeping your creative momentum uninterrupted. On stage, remote access to presets allows you to focus fully on your performance without the need for manual adjustments to the mioXL.

Final Tips

Mastering remote preset management on the mioXL offers a new level of flexibility and control over your setup. For a more in-depth exploration of MIDI management, be sure to download Auracle for X-Series, iConnectivity’s control software, which enhances your ability to configure and manage the mioXL.

Explore more tips and tutorials on our blog to take your mioXL skills to the next level. And if you have any questions that weren’t covered in this article, don’t hesitate to reach out to our help center for additional support!
